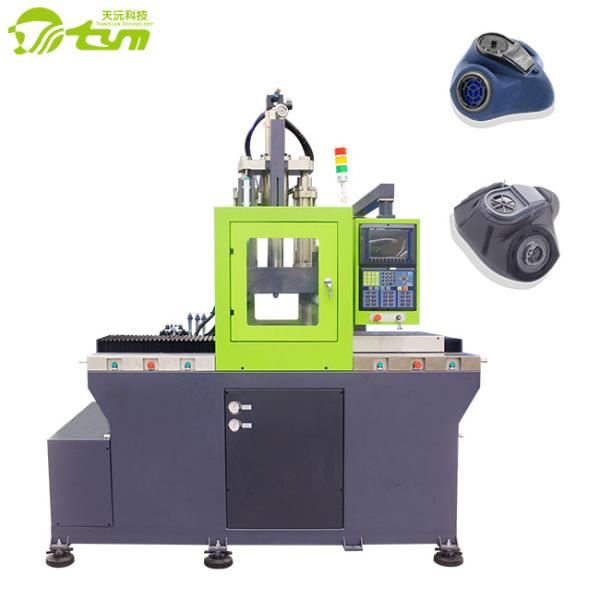

    Liquid Rubber Silicone Injection Molding Machine Clamping Force 130 T

    Ask Lasest Price
    Brand Name : TYM
    Model Number : TYM-5058
    Certification : CE/ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 45 workdays
    • Product Details
    • Company Profile

    Liquid Rubber Silicone Injection Molding Machine Clamping Force 130 T

    Liquid Rubber Silicone Injection Molding Machine Clamping Force 130 T


    Machine Model Parameter

    TYM-L5058 Vertical LSR injection molding machine
    Injection Unit
    Shot Volume165 g
    Injection Rate30 g/s
    Injection Pressure19.6 T
    Clamping Unit
    Clamping Force130 T
    Opening Stroke250-550 mm
    Tie-Bars Pace500*580 mm
    Ejection Force7.8 T
    Ejection Stroke150 mm
    Others
    Pump Pressure21 Mpa
    Motor Power12.1 KW
    Heater Power9 KW
    Mould Orientation Ring DiameterΦ 100 mm
    Machine Weight6 T
    Machine Dimension2.5*1.6*3.6 m
