    Servo Motor Vertical Silicone Injection Molding Machine 100T High Yield

    Ask Lasest Price
    Brand Name : TYM
    Model Number : L5058
    Certification : CE
    Price : USD35888~45888/SET
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 1000SETS/Month
    Delivery Time : 30~60 work days
    • Product Details
    • Company Profile

    Servo Motor Vertical Silicone Injection Molding Machine 100T High Yield

    High Efficiency Silicone Injection Molding Machine


    100 ton High Yield Servo Motor Vertical Silicone Injection Molding Machine For Protective Silicone Respiratory


    TYM Vertical LSR injection molding machine L-5058 is your best choice


    Guangzhou Tianyuan Silicone Machine Technology Co., Ltd. is established in 2002, which specializes in designing and manufacturing the LSR automatic injection molding machine as well as the LSR mold, we mastered the core technology, the quality is excellent!



    The main feature of the vertical LSR molding machine:

    * Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.

    * Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

    * Meet the requirements on multi-station production

    * High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.


    Mechanical Characteristics for TYM-L5058-2

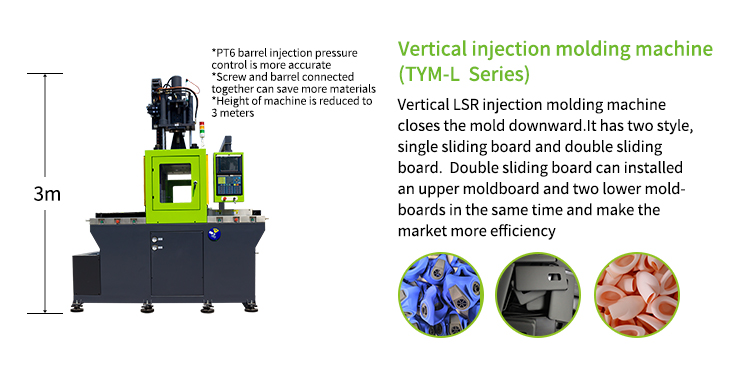

    TYM-L5058 Vertical LSR injection molding machine
    Injection Unit
    Shot Volume165 g
    Injection Rate30 g/s
    Injection Pressure19.6 T
    Clamping Unit
    Clamping Force130 T
    Opening Stroke250-550 mm
    Tie-Bars Pace500*580 mm
    Ejection Force7.8 T
    Ejection Stroke150 mm
    Others
    Pump Pressure21 Mpa
    Motor Power12.1 KW
    Heater Power9 KW
    Mould Orientation Ring DiameterΦ 100 mm
    Machine Weight6 T
    Machine Dimension2.5*1.6*3.6 m

    About Moldshop

    TYM is China's first leading brand providing a one-stop complete solution of "raw material + liquid silicone injection molding machine + mold + technical support + personnel training + finished products” , every client is able to obtain various professional solutions here.


    Application:

    TYM injection molding machine is suitable for multi-purpose silicone rubber molding.

    About Company

    Specialized in liquid silicone 17 years
    TYM was established in 2002, registered capital is 189.32 million,33000㎡ manufacture base, two wholly owned subsidiaries
    More than 60 patents
    12 invention patents, it is rated as a national high-tech enterprise in 2013
    Industry leading
    China's first leading brand providing a complete solution of "Liquid Injection Molding Machine+ mold + process + personnel training”
    Mature experience
    Cooperated with the four major organic silicon producers in the world for many years and has rich experience for liquid silicone application in various industries
    Industry trust brand
    Serve customers in more than 50 countries and regions at home and abroad in many fields, have a deep understanding of product technology, and can provide more professional services
